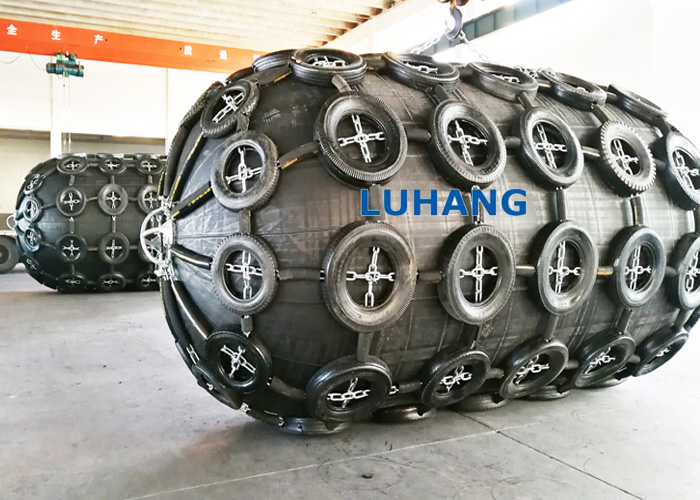

Ship Berthing Pneumatic Rubber Fender 3.3m x 6.5m Marine STS Yokohama Fender
Marine pneumatic rubber fenders can be easily handled and installed with rope or chain because of its light weight. It can resist the shearing force and maintain energy absorption level under inclined compression . Meanwhile, it provides the low and comparatively even hull pressure.
Consisted of several synthetic tire cord layers and tough abrasion resistant outer rubber, they have consistent performance even under rough condition and cyclic load. The maintenance cost and damage risk are minimised also. The best material ensure the self-buoyancy and extremely long service life.
The advantages of pneumatic rubber fender
A. It use reinforced synthetic tire cord layers
B. Vulcanize without mold, strengthen the whole performance of the fender
C.It has high energy absorption and low reaction force
D.A Good adaptability to ship berthing connections
E.Can floating on the surface of the water, and apply for swaying.
Structure characteristics of the pneumatic rubber fender
LuHang pneumatic marine rubber fenders made of an outer rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, vulcanized firmly.
1. The outer rubbers are used to protect the cord layers and inner rubber from abrasion and other external forces. This rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.
2. The reinforced synthetic tyre cord layers strong enough to maintain the internal air pressure of the fender.
3. The inner rubber layer seals the pressed air inside the fender.
Fenders equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally.
| Size(mm) | Compression at 60% | Refence weight (KG) |
| Diameter | Leagth | Energy absorption(KJ) | Reaction (KN) |
| 500 | 1000 | 6 | 64 | 25 |
| 600 | 1200 | 10 | 86 | 35 |
| 700 | 1500 | 17 | 137 | 50 |
| 1000 | 1500 | 32 | 181 | 80 |
| 1000 | 2000 | 45 | 257 | 100 |
| 1200 | 2000 | 63 | 297 | 120 |
| 1350 | 2500 | 100 | 426 | 170 |
| 1500 | 3000 | 153 | 579 | 320 |
| 1700 | 3000 | 190 | 637 | 400 |
| 2000 | 3500 | 308 | 875 | 590 |
| 2500 | 4000 | 663 | 1380 | 1000 |
| 2500 | 5500 | 932 | 2010 | 1400 |
| 3000 | 5000 | 1050 | 2030 | 1800 |
| 3000 | 6000 | 1315 | 2488 | 2200 |
| 3300 | 6500 | 1814 | 3015 | 2700 |
| 3500 | 6000 | 2018 | 3286 | 2800 |
| 3500 | 6500 | 2325 | 3656 | 3200 |
| 3500 | 7500 | 2650 | 4018 | 3600 |
| 4500 | 9000 | 4752 | 5745 | 6800 |
Company
Luhang located in Jidong Industrial Park, Jimo City, Qingdao. We are a professional manufacturer of multi-purpose marine equipment including ship launching and landing airbag, pneumatic rubber fender, EVA foam filled fender, marine buoys in deep and shallow seas etc. Through many years’ development and accumulation, we have developed to a new high-tech enterprise with an integration of scientific research and design, product R&D,sales and technical service.
